Fourth Semester

Multistorey Apartment building with commercial space on the ground level

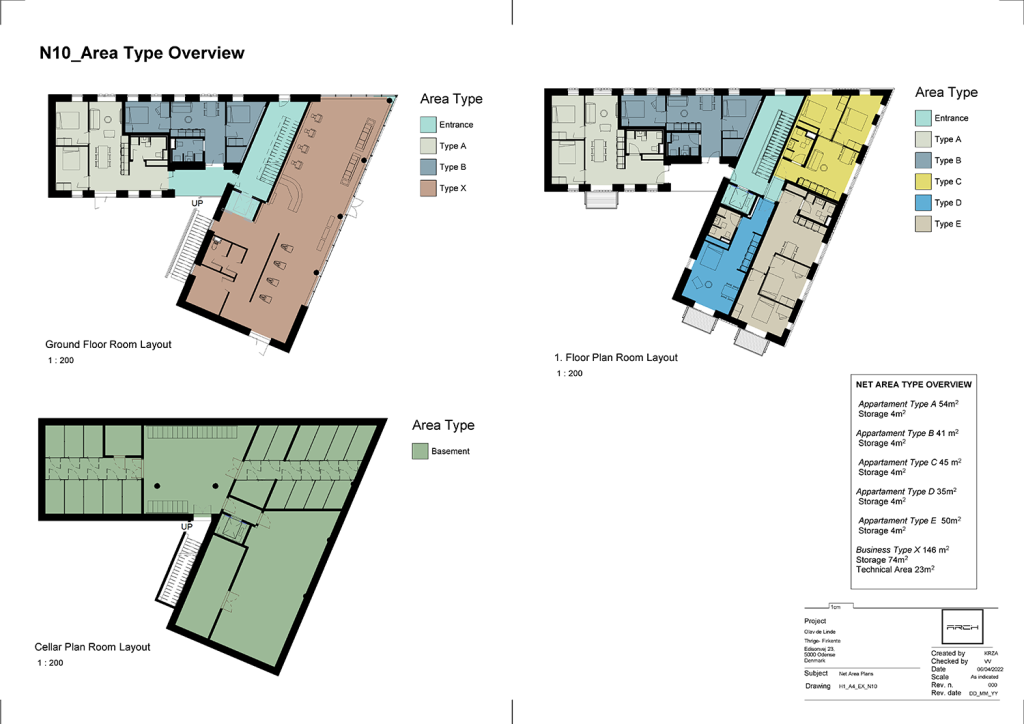

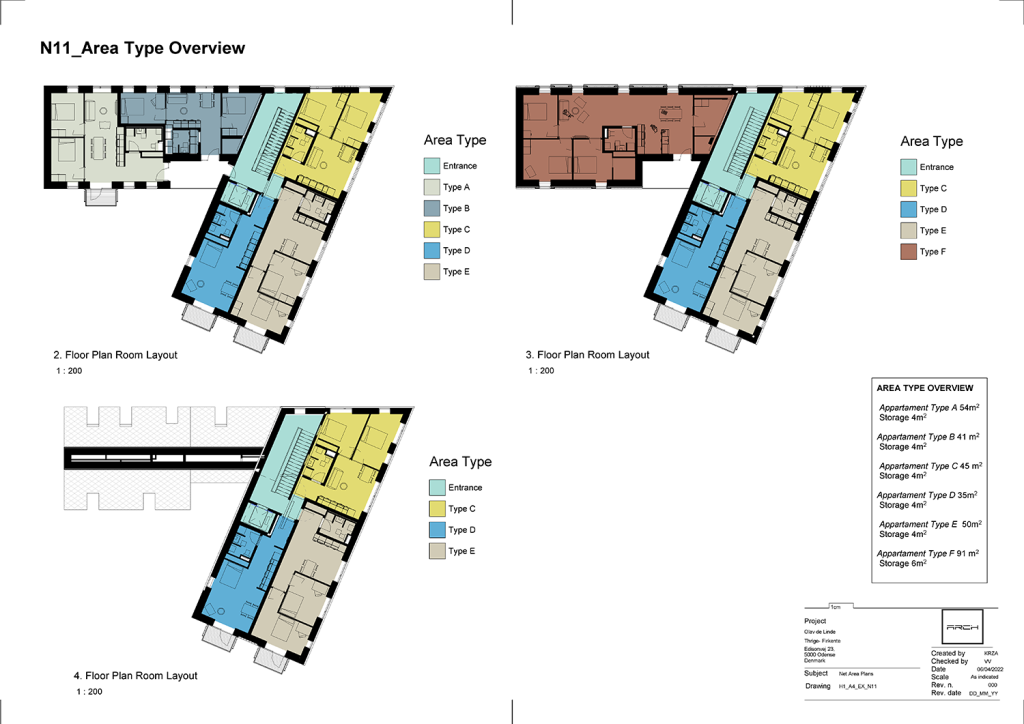

The project consists of 19 apartments ranging in size 35 – 91 m² and a commercial space of 149 m².

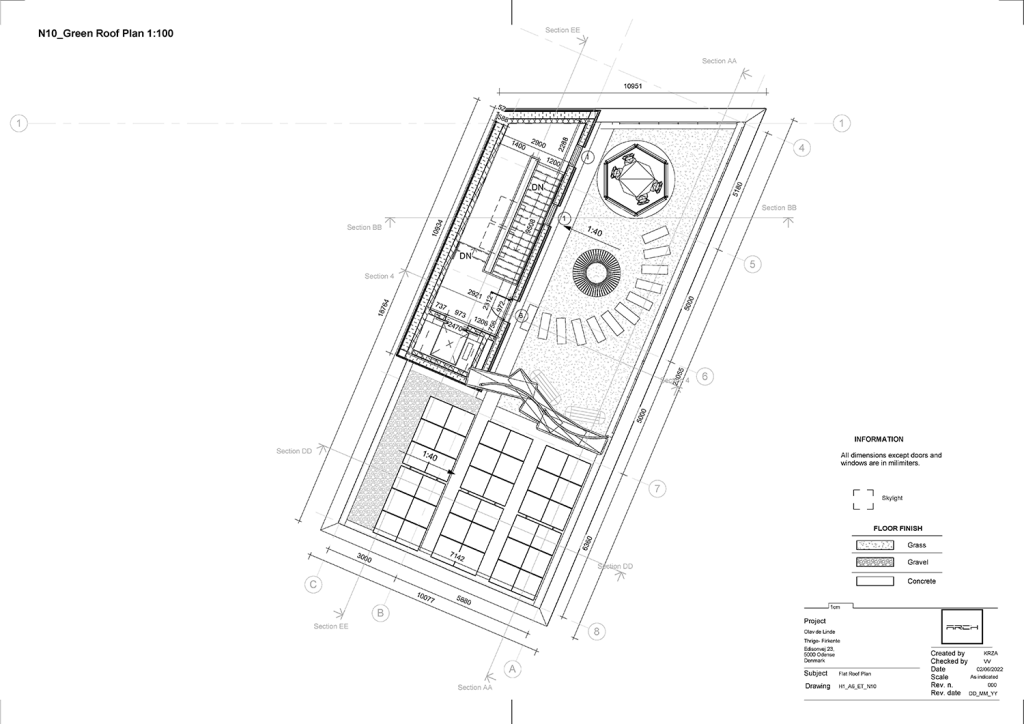

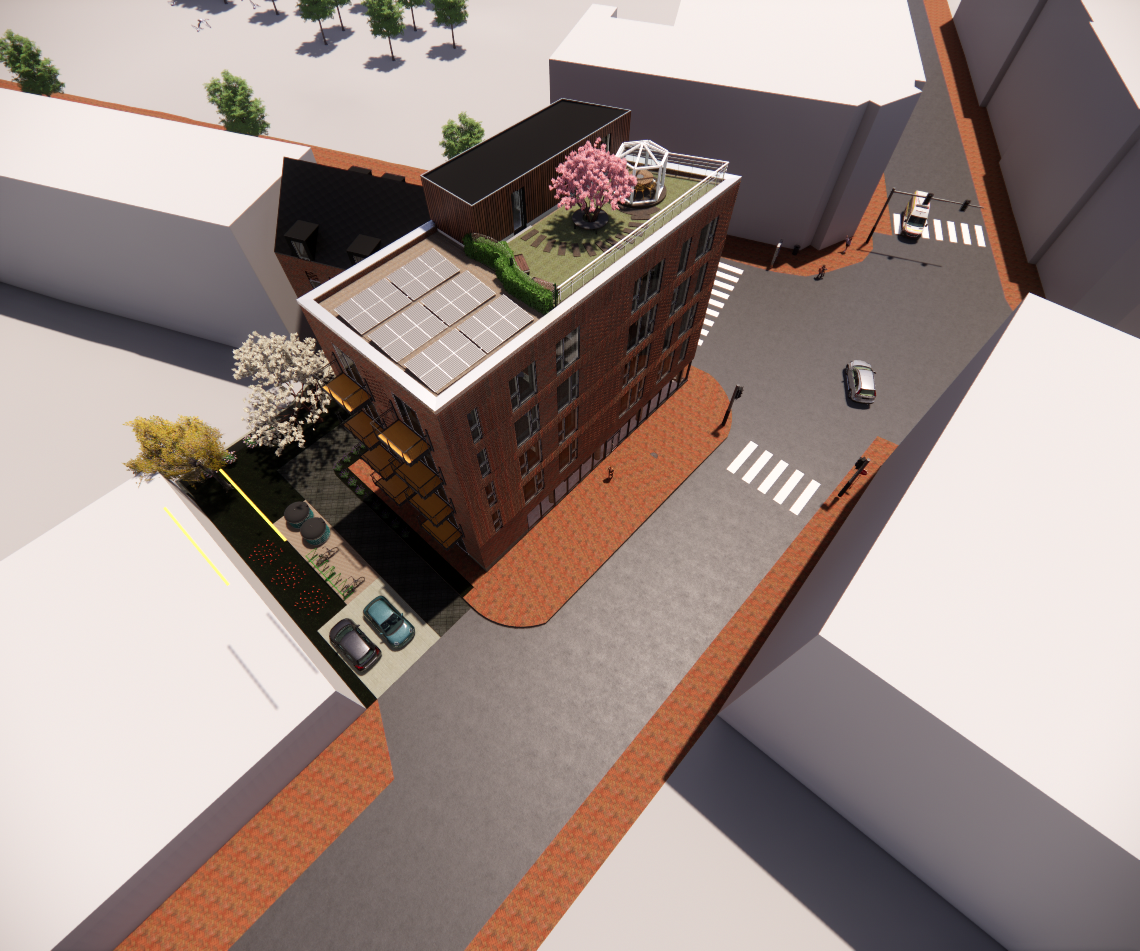

The green roof area of 130 m² of which 46 m² was recognized as an intensive green roof with possibilities of tree and greenery plantations to support the biodiversity, air purification and stormwater management.

Key Learnings

  • Determining and adhering to budgets and timelines
  • Taking charge of the project team
  • Managing project from outline proposal through the construction phase
  • Conducting feasibility and environmental impact studies and generating reports
  • Adapting designs and plans to meet the needs of the customer

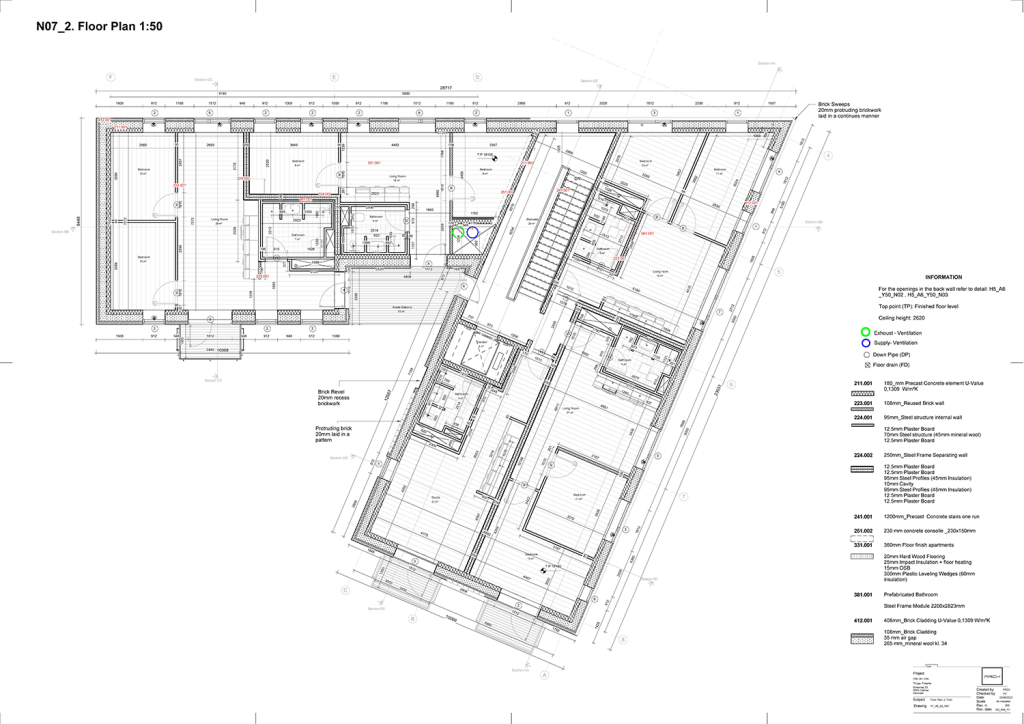

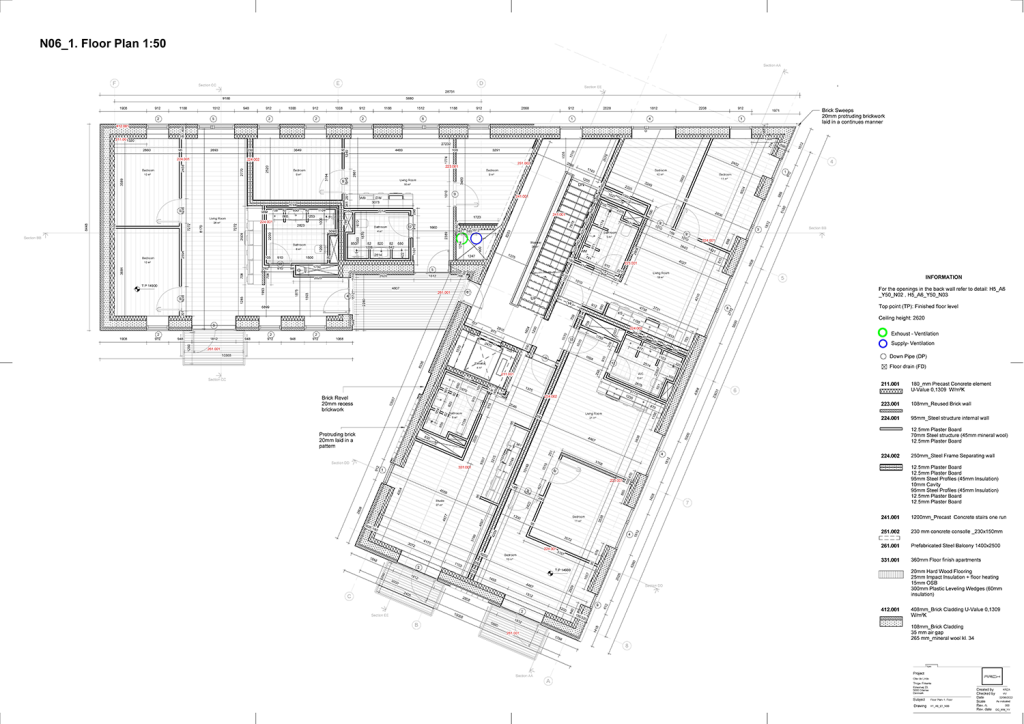

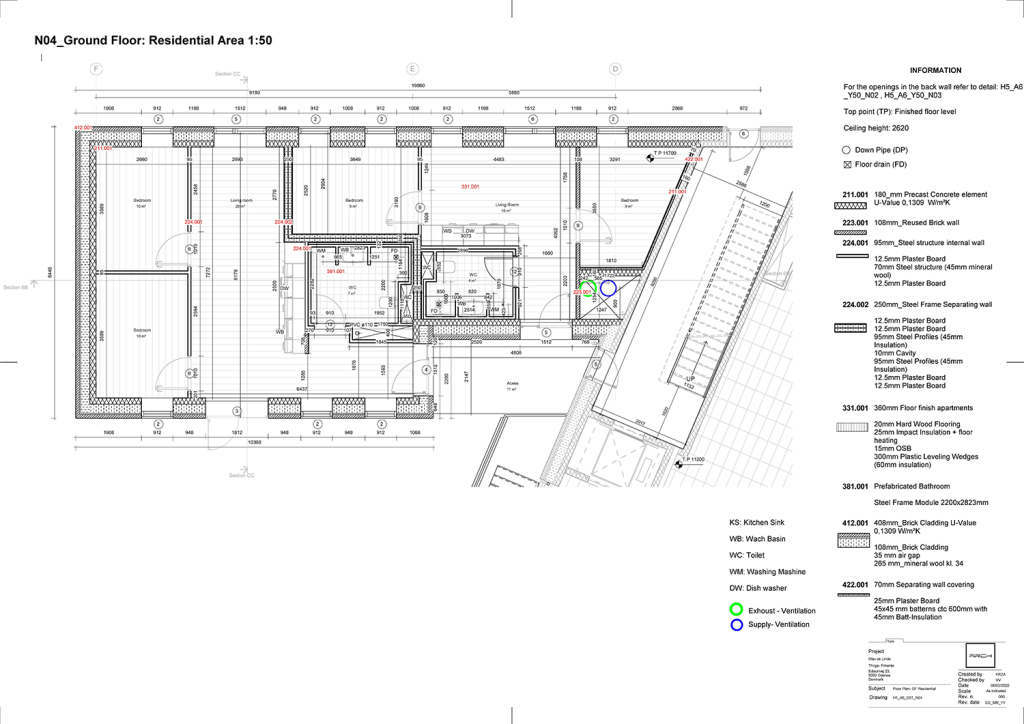

  • Preparing drawings, specifications, and construction documents

Throughout the project stages, asides from my role as a project manager I work with brick facades.

Total gross area: 2493 m²



Grade: 12

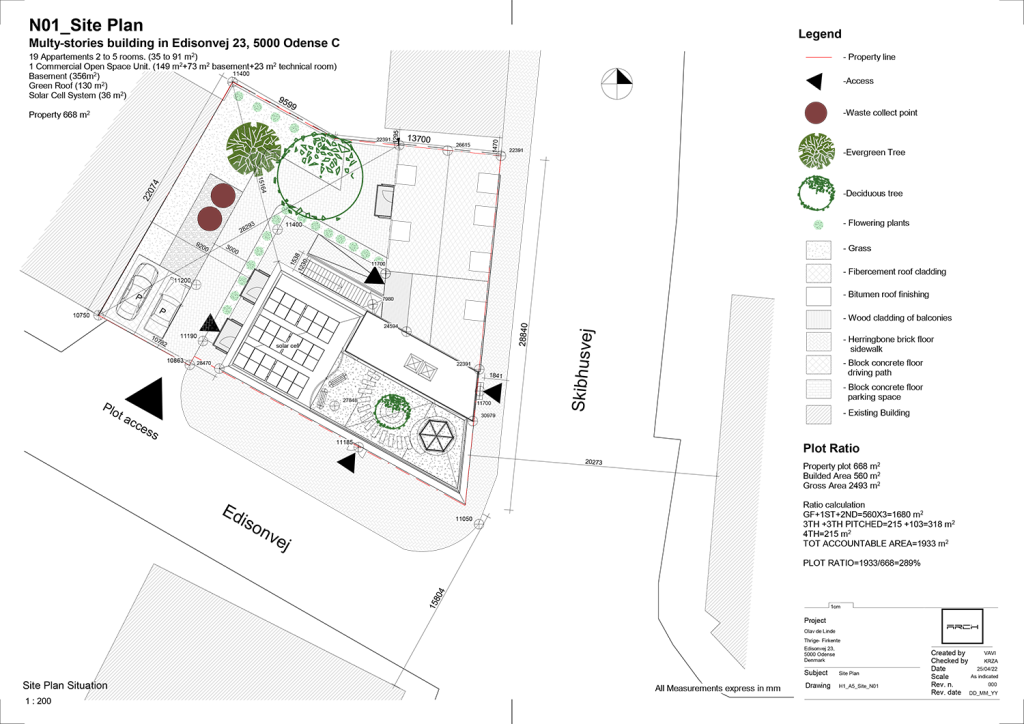

Project Location:

Edisonvej 23,

5000 Odense C

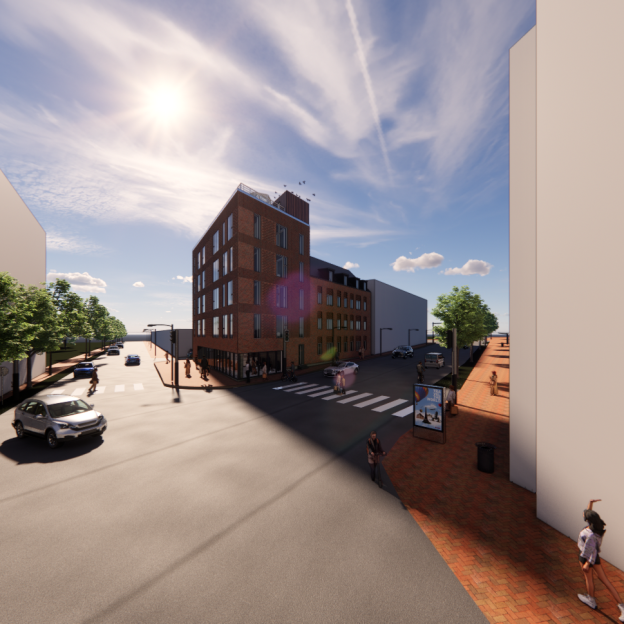

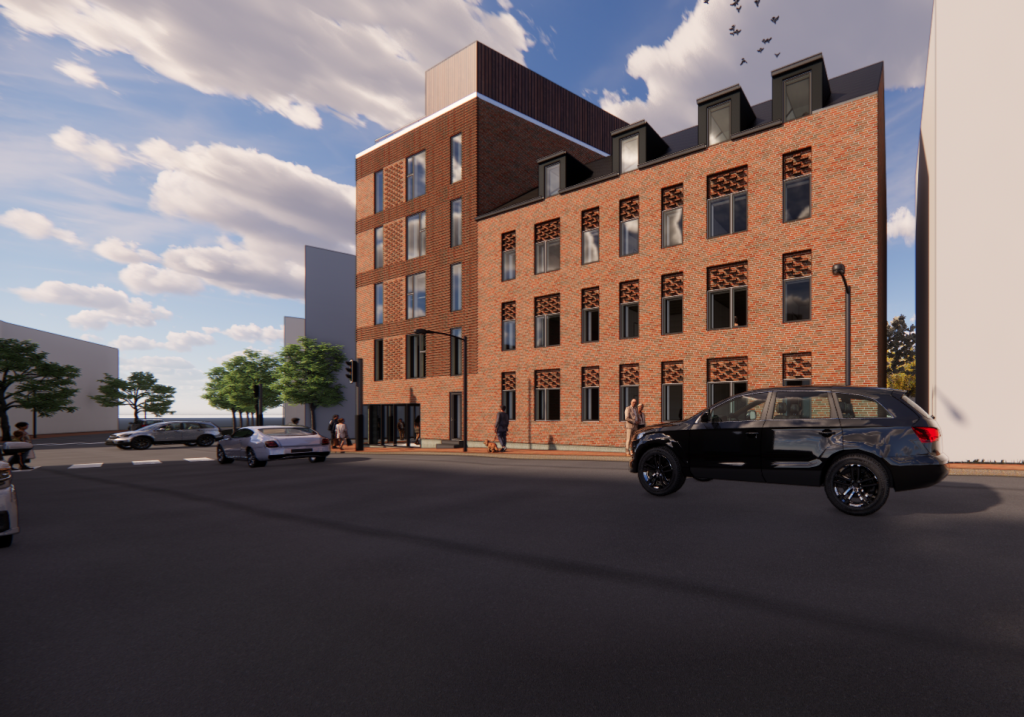

Enscape_2022-05-18-09-07-06

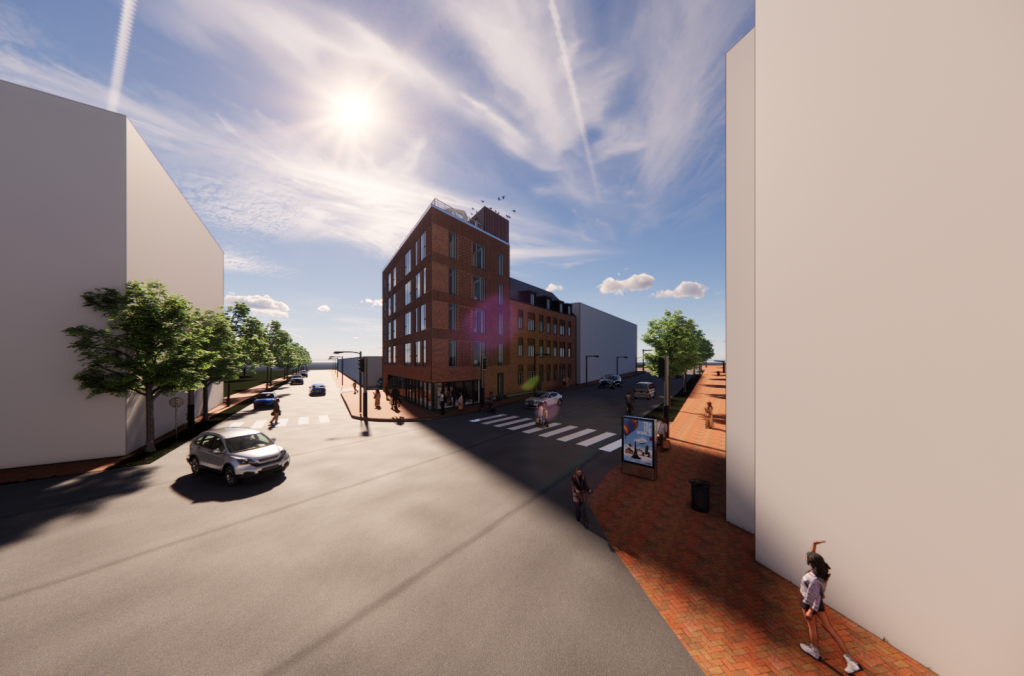

Enscape_2022-05-18-09-12-18

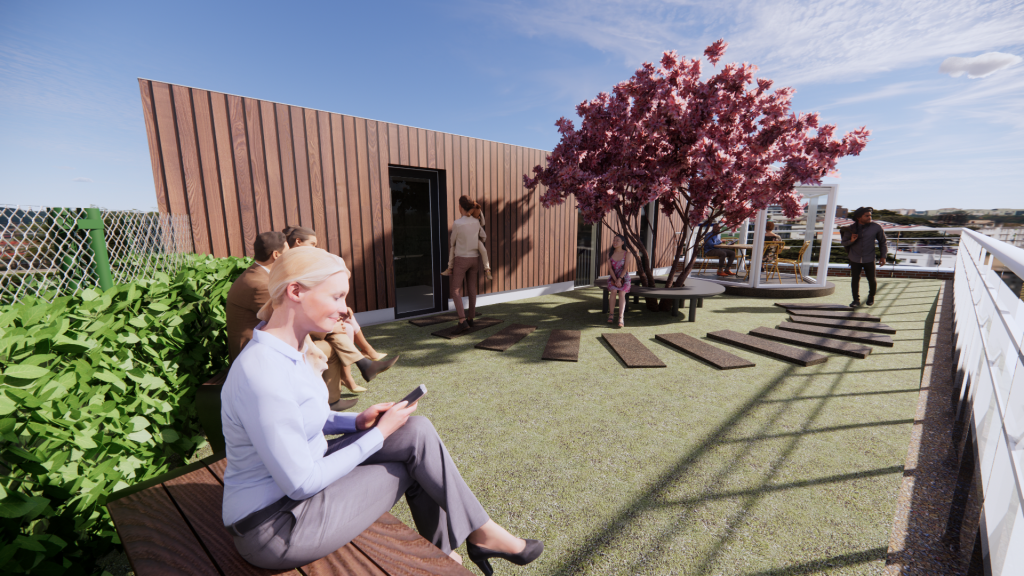

roof tarace

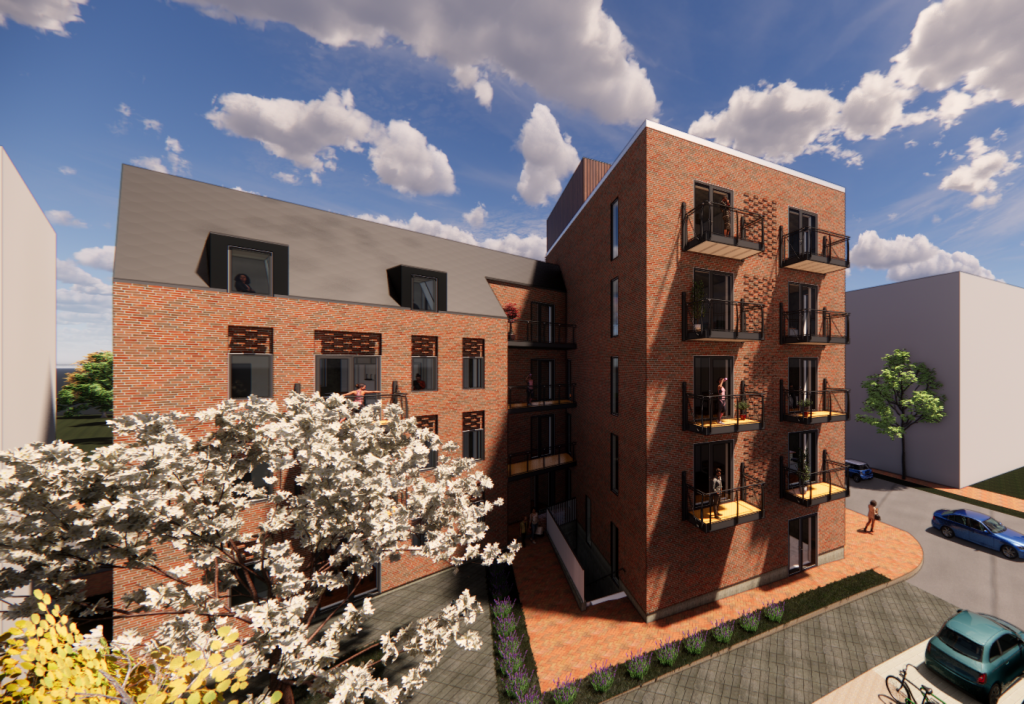

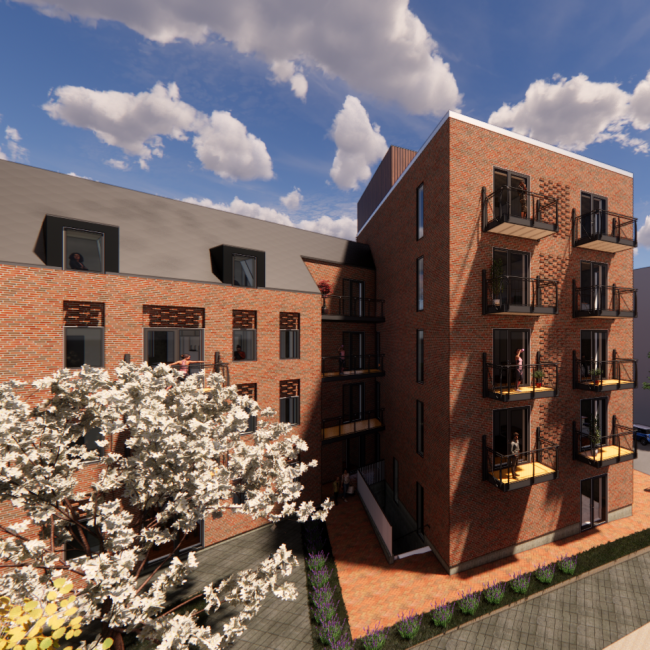

Enscape_2022-05-18-09-10-05

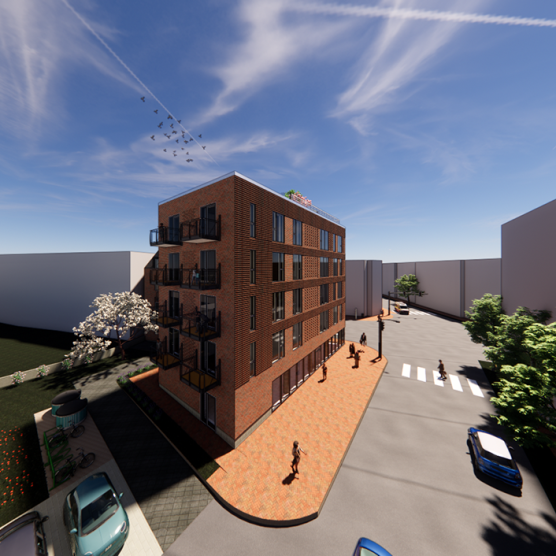

Enscape_2022-04-24-15-28-49
Enscape_2022-04-04-09-27-00_Enscape 3D v4

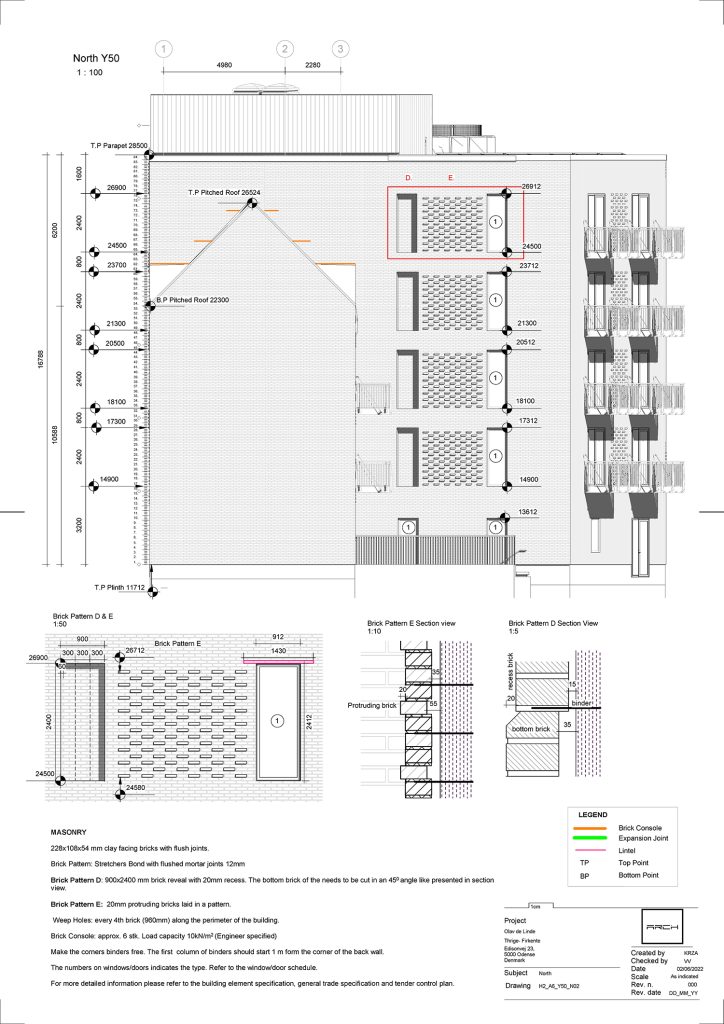

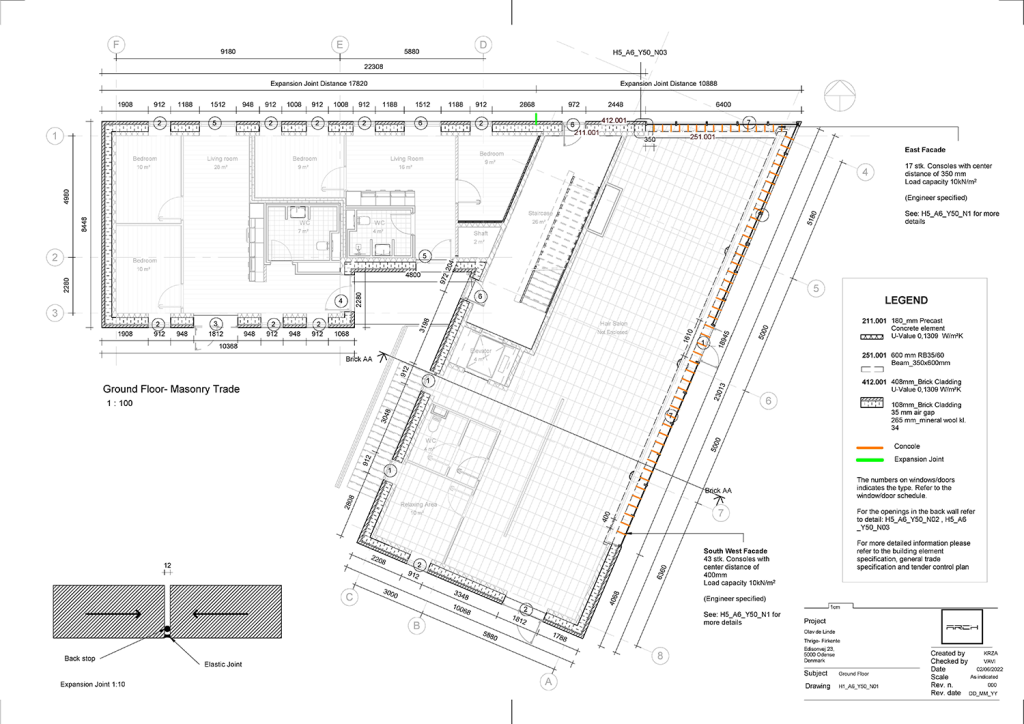

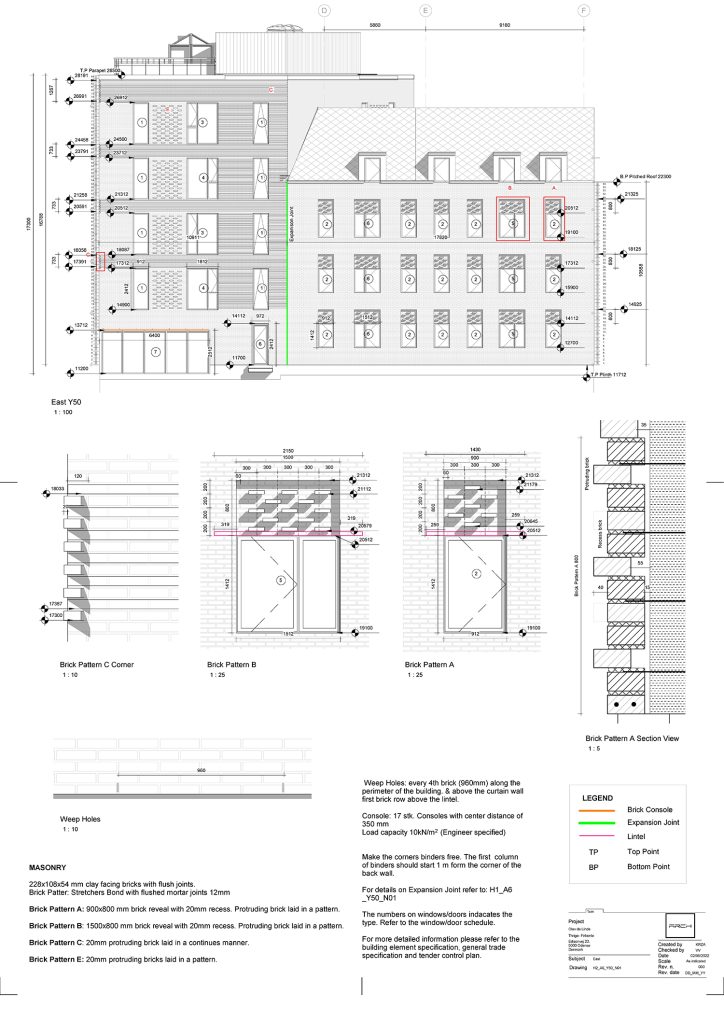

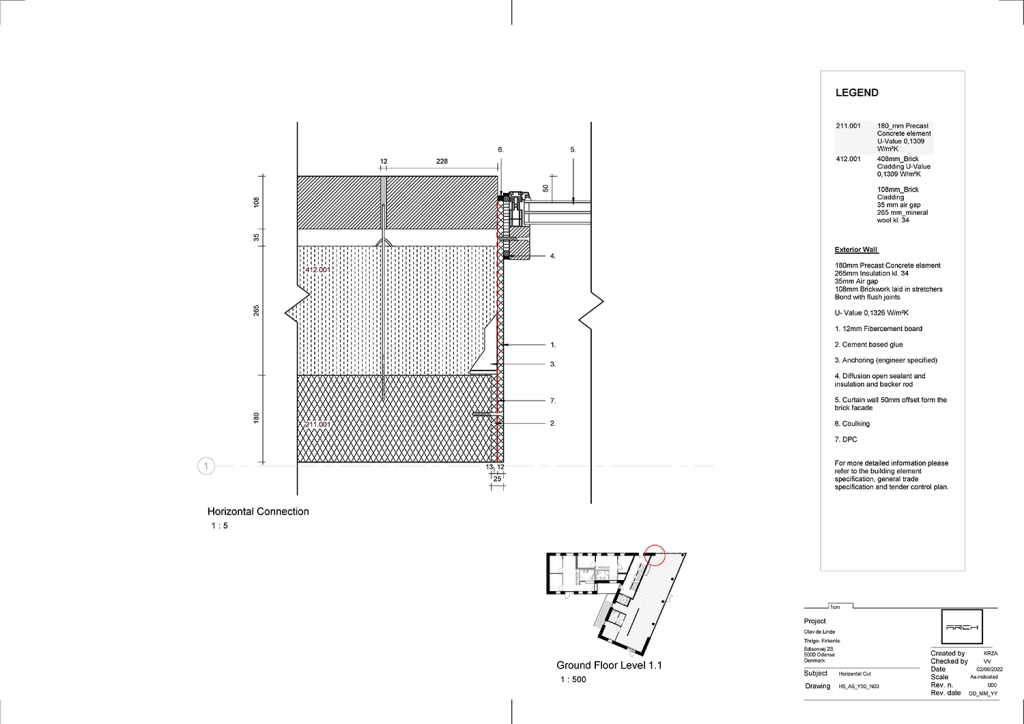

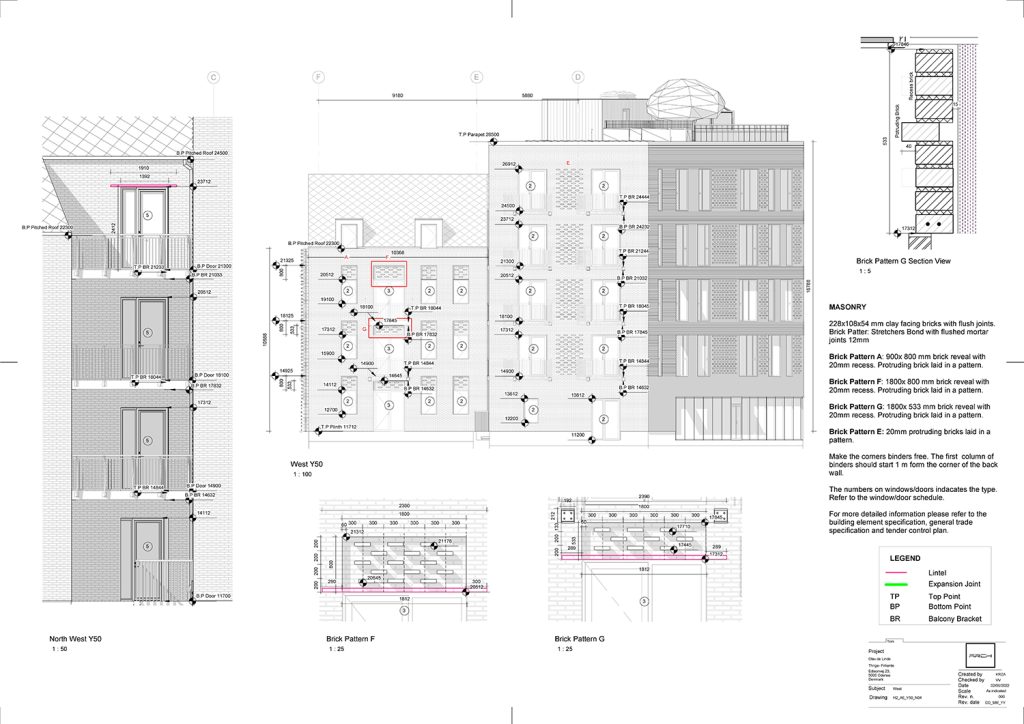

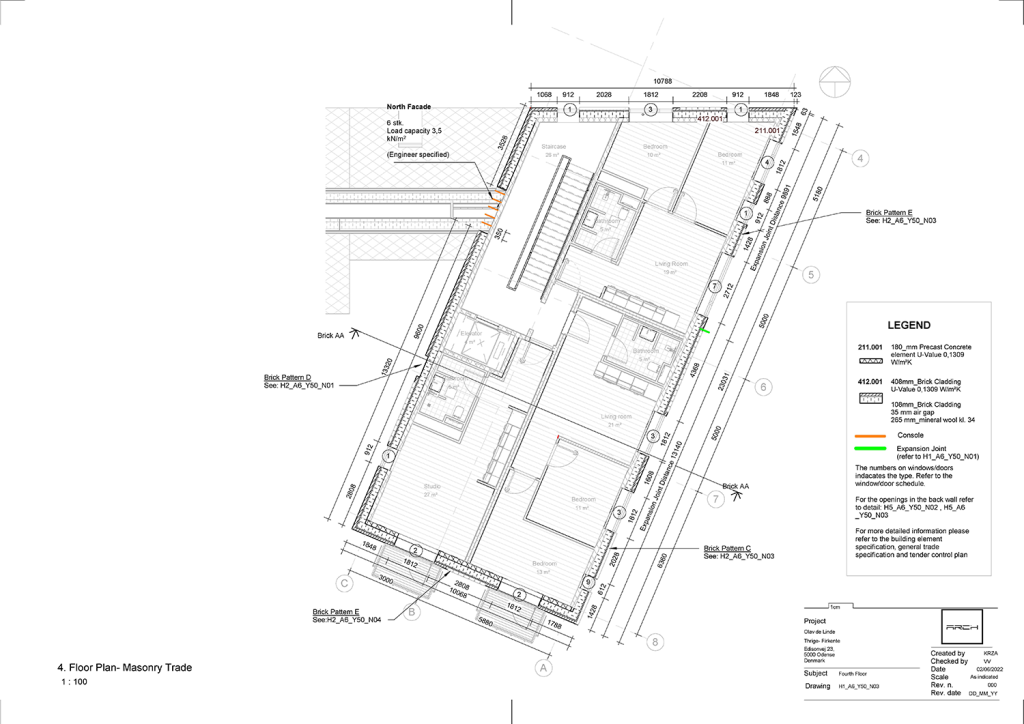

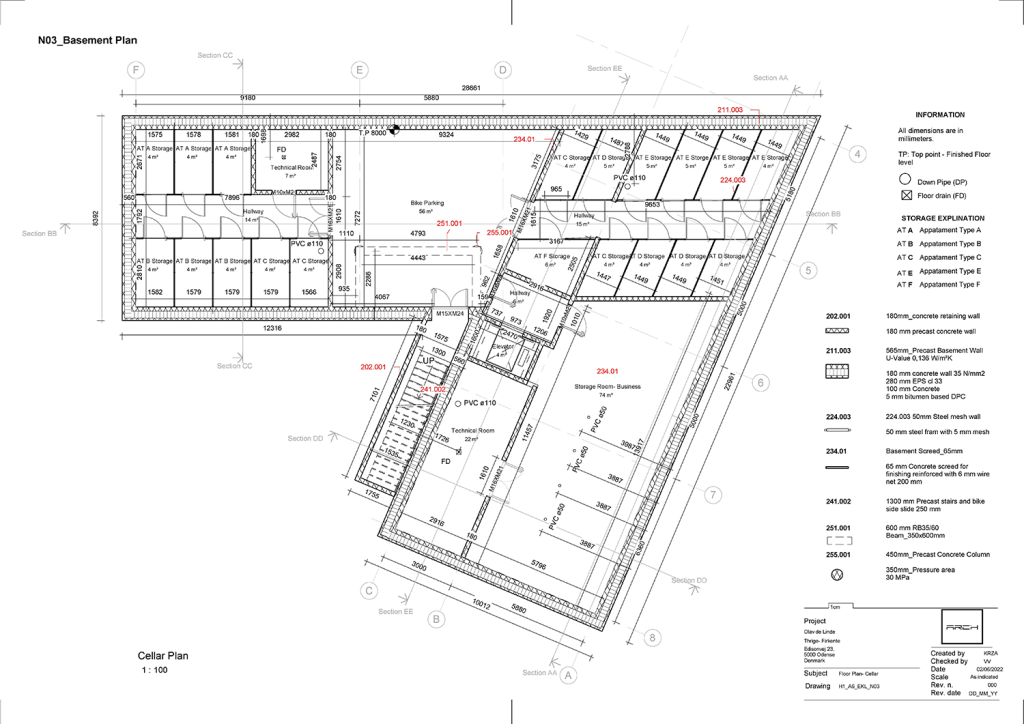

Tender & Construction design DD2

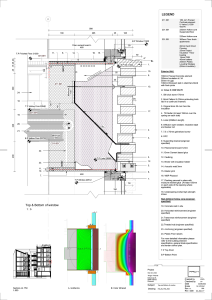

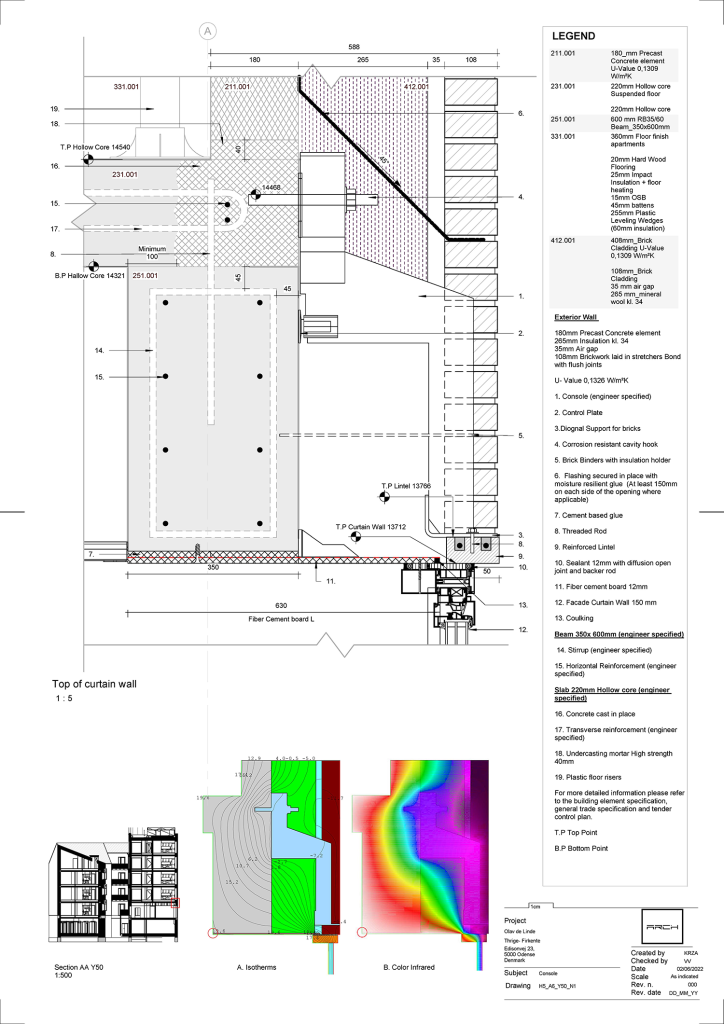

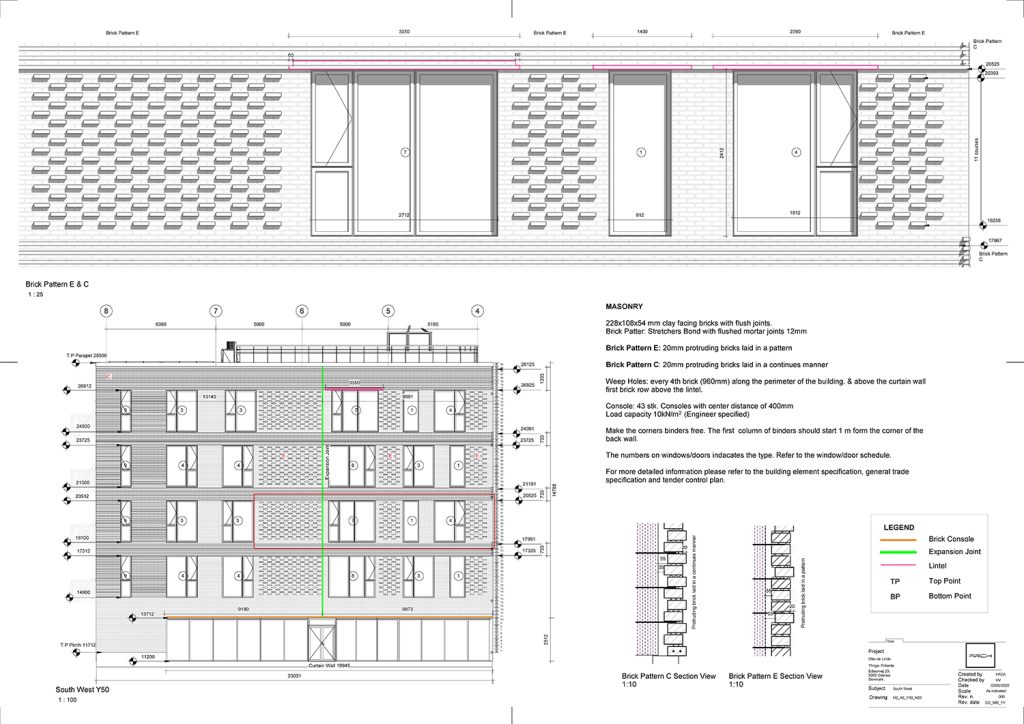

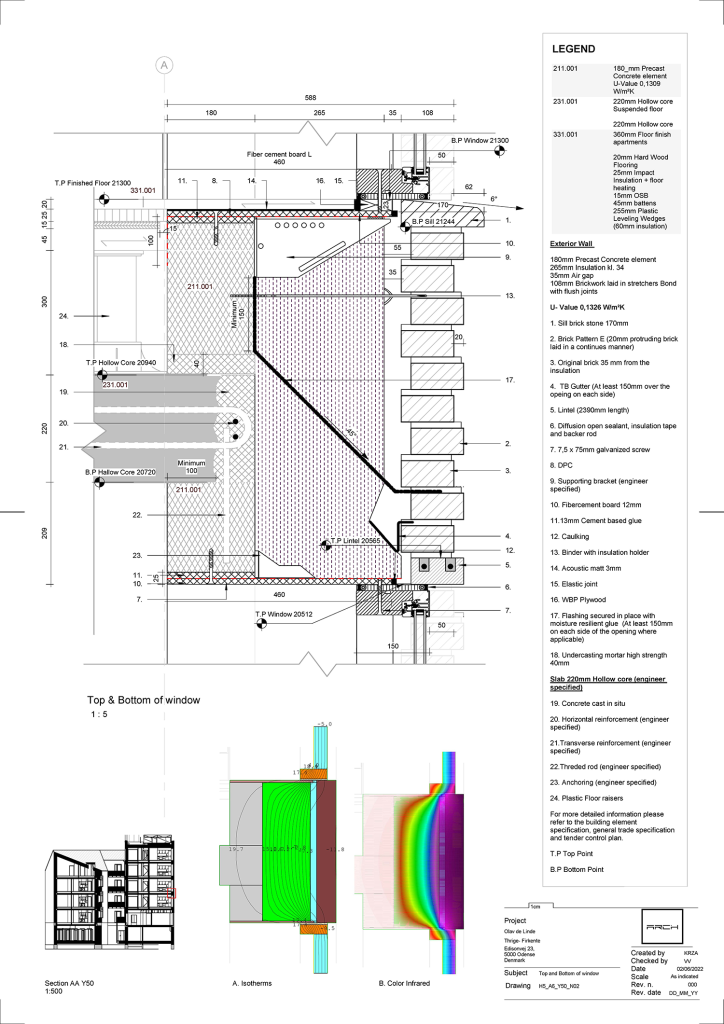

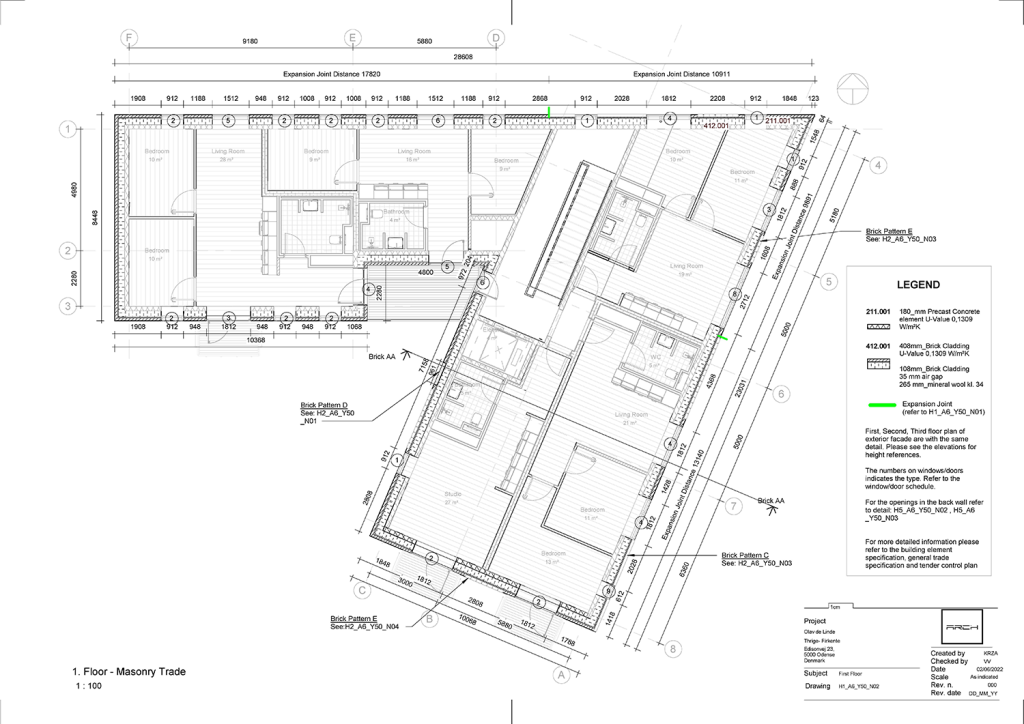

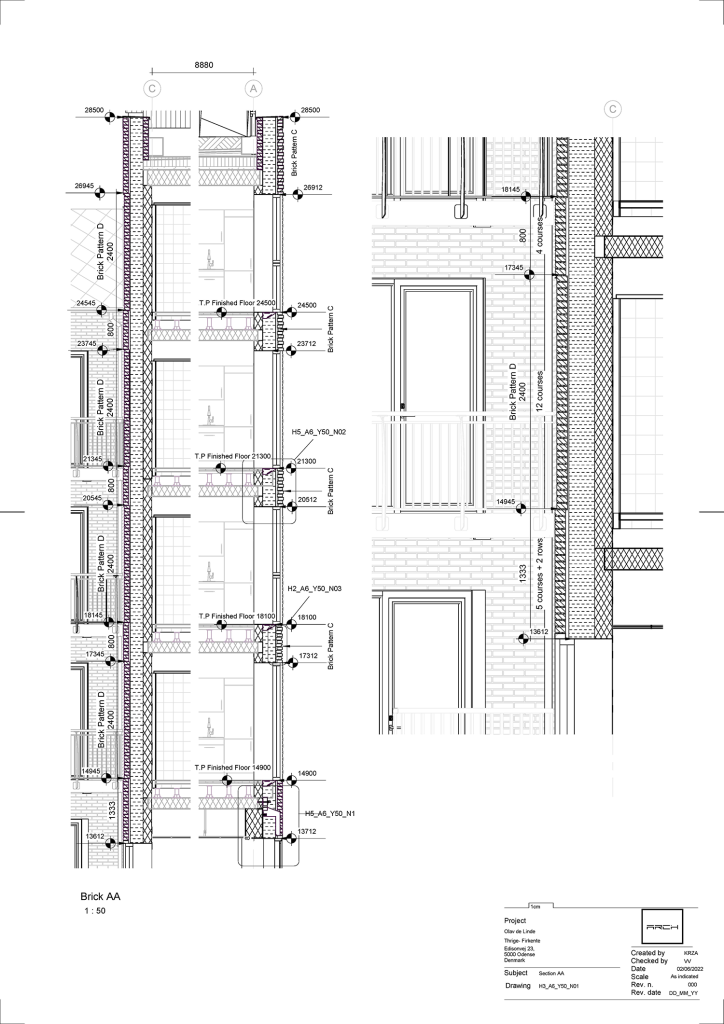

During the DD2 phase of the project, I primarily worked with the masonry trade. My responsibilities included establishing trade-related construction documents: general trade specifications, building element specifications, bid lists, tender quality control plans and technical drawings.

Software used throughout project phases
